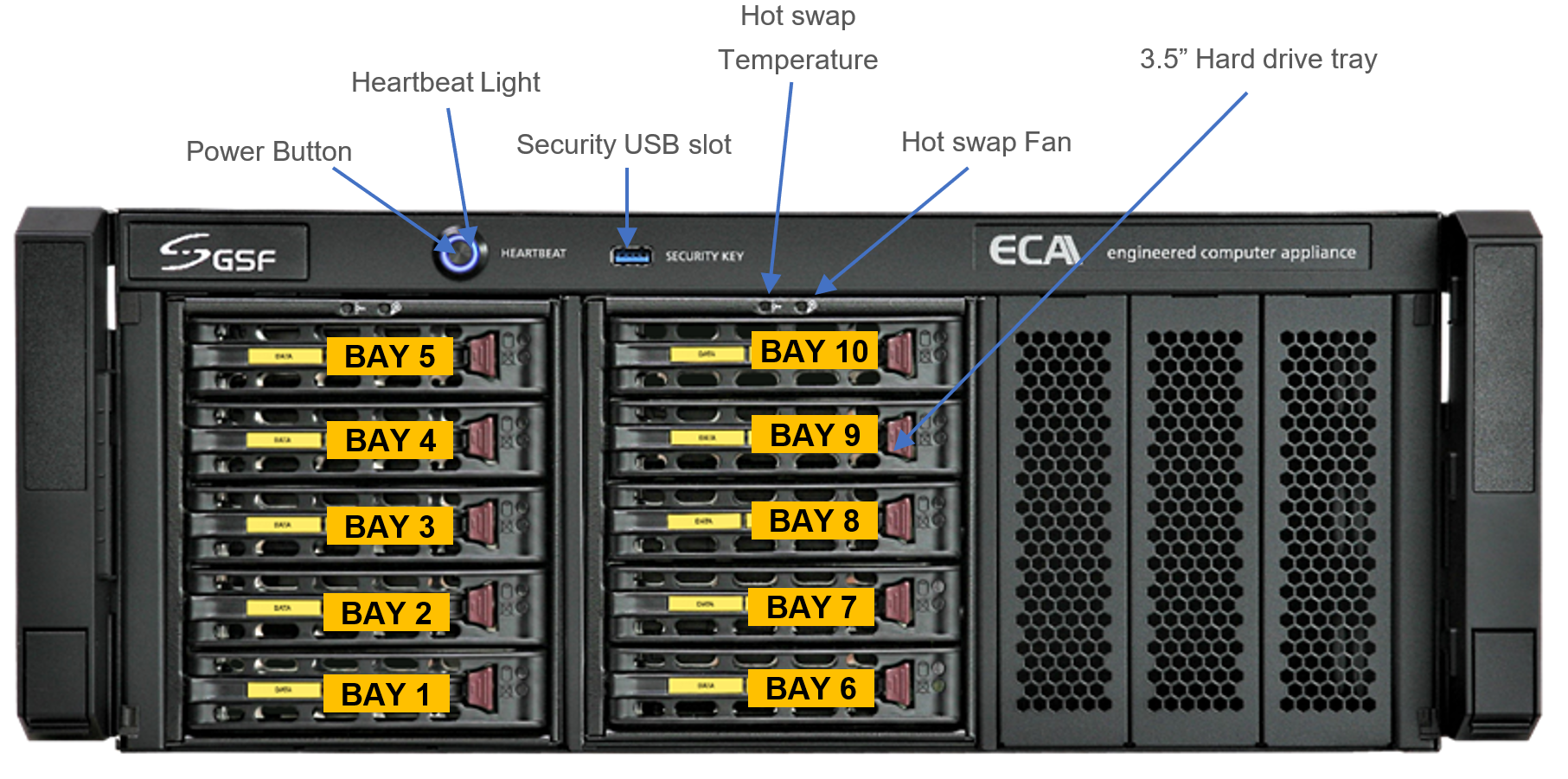

Front Panel
| Power Button | Press to power-up the ECA. |
| HeartBeat Light | LED indicator which also display the status of ECA operation state. |
| Security USB slot | Ports for ECA Security Key (USB type) which is used for authentication purpose to access ecaOS Dashboard. |
| Hot-Swap Temperature | Ports for ECA Security Key (USB type) which is used for authentication purpose to access ecaOS Dashboard. |
| Hot Swap Fan | The LED will light up if no hot swap fan detected or not functioning |
| Bay 1 - Bay 10 | Hard Disk Drive Bay 1 to Bay 10. Total 10 bays for EX model. |
Rear Panel
